SPR分子相互作用儀


一、型號/Model：SPR-T200, SPR-T210, SPR-I300

二、技術參數/Specifications：
型號/Model SPR-T200 SPR-T210 SPR-I300
光源
Light Source		 類型/Type He-Ne Laser He-Ne Laser He-Ne Laser,and LED
波長/wavelength 632.8nm 632.8nm 632.8nm,and 621±10nm
轉臺
Rotation Stage		 轉臺數量
Number of Rotation stage		 Motor 1, sample motor
Motor 2, detector motor		 Motor 1, sample motor
Motor 2, detector motor		 Motor 1, sample motor
Motor 2, detector motor
轉臺控制
Control of rotation stage		 軟件自動控制
Automatically control		 軟件自動控制
Automatically control		 軟件自動控制
Automatically control
轉臺角度精度
Rotation angular resolution		 <= 0.02°
可升級/upgradable		 0.01°
可升級/upgradable		 0.01°
可升級/upgradable
轉臺旋轉角度范圍
Rotation angles		 0-360°(Motor 1)
0-180°(Motor 2)		 0-360°(Motor 1)
0-180°(Motor 2)		 0-360°(Motor 1)
0-180°(Motor 2)
最佳測量角度范圍
Optimal measurable angles		 15-80°(incident angle)
(for prism 1.845)		 15-80°(incident angle)
(for prism 1.845)		 15-80°(incident angle)
(for prism 1.845)
轉臺防撞系統
Anti-collision system		 兩個行程開關 AZ-721， detector motor 超出 0-180°范圍時關閉電機2 limit switches AZ-721, used to switch off the detector motor when it runs beyond 0-180°. 兩個行程開關 AZ-721， detector motor 超出 0-180°范圍時關閉電機2 limit switches AZ-721, used to switch off the detector motor when it runs beyond 0-180°. 兩個行程開關 AZ-721， detector motor 超出 0-180°范圍時關閉電機2 limit switches AZ-721, used to switch off the detector motor when it runs beyond 0-180°.
角度校準
Angular calibration		 半自動
Semi-automatic		 半自動
Semi-automatic		 半自動
Semi-automatic
載物臺
Stage		 平臺控制類型
Motion Type		 手動
Manual		 手動
Manual		 手動
Manual
移動平臺
Translation stage		 XYZ 移動平臺 XYZ 移動平臺 XYZ 移動平臺
檢測器
Detector		 光檢測器
Photo detector		 光電二極管
Photo-diode detector		 光電二極管
Photo-diode detector		 光電二極管+CCD相機
A photo-diode detector, and a CCD camera
流通系統
Flow Cell System		 進樣系統
Injection system		 蠕動泵
Peristaltic Pump		 蠕動泵
Peristaltic Pump		 蠕動泵
Peristaltic Pump
型號 Type BT100-2J BT100-2J BT100-2J
通道數
Pump channels		 2 2 2 or 4(Optional)
進樣控制
Injection Control		 自動和手動均可
Both Automatic and Manual		 自動和手動均可
Both Automatic and Manual		 自動和手動均可
Both Automatic and Manual
進樣體積
Injection Volume		 20-750 μl 20-750 μl 20-750 μl
流通池容量
Flow Cell Capacity		 20-100 μl 20-100 μl 20-100 μl
流通通道數量
Flow Cell Number		 單通道
Single Channel		 單通道
Single Channel		 1-4通道（可選）
1-4 Channels (Optional）
基本參數
Basic Parameters		 設備尺寸
Instrument Size		 1120 mm*560 mm*560 mm 1120 mm*560 mm*500 mm 1100 mm*560 mm*500 mm
設備重量
Instrument Weight		 約120 kg 約120 kg 約120 kg
折射率靈敏度
Sensitivity		 10-5-10-6 RIU
Depends on the sensor chips		 10-6 RIU
Depends on the sensor chips		 10-6 RIU
Depends on the sensor chips
配件
Accessories		 棱鏡
Prism		 折射率/Refractive index, 1.745或1.845
可調換/Exchangeable		 折射率/Refractive index, 1.745或1.845
可調換/Exchangeable		 折射率/Refractive index, 1.745或1.845
可調換/Exchangeable
流通池
Flow cell		 Quartz and PDMS Quartz and PDMS Quartz and PDMS
管
Tubes		 2 Stops, Tygon R3607,
ID:0.64mm; Wall:0.91mm		 2 Stops, Tygon R3607,
ID:0.64mm; Wall:0.91mm		 2 Stops, Tygon R3607,
ID:0.64mm; Wall:0.91mm
匹配油
Matching Oil		 1.7000±0.0002
Cargille Labs		 1.7000±0.0002
Cargille Labs		 1.7000±0.0002
Cargille Labs
樣品芯片
Sample Chips		 Sensor chips with 50 nm Au
可定制/Customizable		 Sensor chips with 50 nm Au
可定制/Customizable		 Sensor chips with 50 nm Au
可定制/Customizable
其他
Others		 電源
Power Supply		 220V/50 HZ AC 220V/50 HZ AC 220V/50 HZ AC
軟件
Software		 Sensby SPR Sensby SPR Sensby SPR
操作系統
System		 Windows 7, 10 Windows 7, 10 Windows 7, 10

三、設備可以實現功能/Functions of SPR
　　儀器 SPR 是基于表面等離子體共振（SPR）技術來實時跟蹤生物分子間的相互作用，不需任何標記物的技術。該設備通過固定波長，測量角度反射光譜獲得分子相互作用信息；也可固定入射角度，測量分子相互作用動力學曲線。SPR可進行：1、動力學常數的測定；2、樣品濃度的測定；3、分析相互作用模式；4、復合物功能分析。

The instrument SPR is based on Surface Plasmon Resonance (SPR) technology to monitor the interaction of biomolecules in real time. The molecular interactions information is obtained by measuring the angular reflection spectroscopy at a fixed wavelength; or measuring the kinetic of molecular interactions through reflectivity intensity changes at a fixed incident angle. SPR is able to perform the determination of kinetic constant, detection of sample concentration; analysis of the interaction modes and functional analysis of complex.

四、設備的主要應用領域/Main Application Field of SPR
蛋白質組學研究（Proteomics） 免疫測定法（Immunoassay）
新藥研發（Drug Discovery） 疫苗開發（Vaccine Development）
癌癥研究（Cancer Research） 瞬時結合（Transient Binding）
信號傳遞 (Cell Signaling ) 配體垂釣（Ligand Fishing）
多分子復合物的結構和組裝（ Multi-molecular Complexes） 結合特異性（Binding Specificity）
分子識別（Molecular Recognition） 結構與功能的關系（Structure-function Relationship）
免疫調節（Immune Regulation） 酶反應（Enzyme Reaction）

五、基本原理/Principle

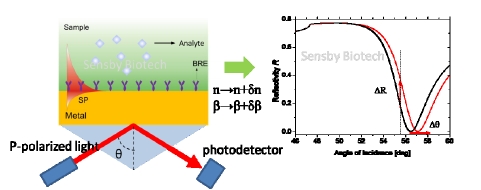

　　如圖所示，SPR 分子相互作用儀器的原理是波長 632.8 nm 的激光形成的 p 偏振光，到達棱鏡后激發金屬表面的表面等離子體發生共振。通過改變?nèi)肷涔饨嵌?θ，實時檢測反射光強度的變化 R，根據反射光強度變化 ΔR 或共振角度的變化 Δθ，實現分子相互作用的檢測；也可以通過固定角度，測量反射光強的變化曲線獲得分子相互作用動力學常數。

As shown in the figure, the laser at the wavelength of 632.8 nm passes through a polarizer to become a transverse magnetically polarized beam and is coupled to glass prism to excite surface plasmon resonance of sensor chip. The reflected light intensity R is detected in real time by the changes of incident light angle θ. The detection of molecular interactions can be achieved by the changes of ΔR or Δθ; the molecular interaction kinetic constants can also be obtained by measuring the reflectivity changes at a fixed angle.

六、資料下載
森佰SPR-T200說明書
SPR T200 software

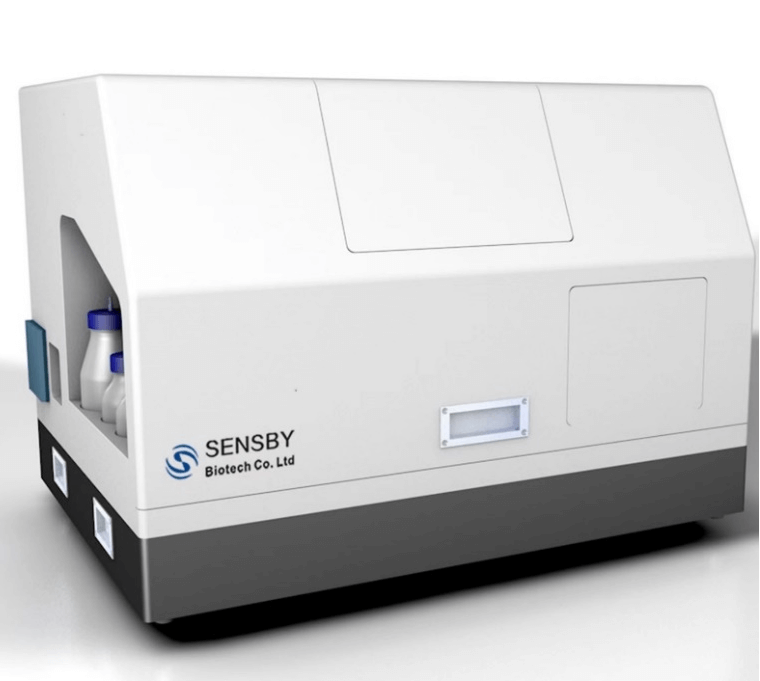

型號/Model SPR-T210 SPR-I400
檢測器
Detector		 光檢測器
Photo detector		 光電二極管
Photo-diode detector		 CCD
CCD
流通系統
Flow Cell System		 進樣系統
Injection system		 蠕動泵
Peristaltic Pump		 注射泵
Peristaltic Pump
進樣控制
Injection Control		 半自動
Semi-Automatic		 自動
Automatic
樣品臺
Sampling		 -- 96孔板
自動切換
進樣體積
Injection Volume		 20-750 μl 20-750 μl
流通池容量
Flow Cell Capacity		 20-100 μl 20-100 μl
流通通道數量
Flow Cell Number		 單通道
Single Channel		 4通道
4 Channels
基本參數
Basic Parameters		 設備尺寸
Instrument Size		 1120 mm*560 mm*500 mm 850 mm*630 mm*611 mm
設備重量
Instrument Weight		 約120 kg 約50 kg
樣品折射率測量范圍
Measurable Sample Refractive Index		 1~1.5 1~1.5
折射率靈敏度
Sensitivity		 ~10-6 RIU
Depends on the sensor chips		 ~10-6 RIU
Depends on the sensor chips
濃度定量靈敏度
Sensitivity for Concentration Detection		 10 ng/ml 10 ng/ml
定量范圍
Detection Range		 0.1 μg/ml – 5 mg/ml 0.1 μg/ml – 5 mg/ml
檢測濃度范圍
Detection Range		 0.05 nM-1 mM 0.05 nM-1 mM
檢測解離常數（KD）范圍
KD Range		 0.05 nM-0.1 mM 0.05 nM-0.1 mM
配件
Accessories		 棱鏡
Prism		 折射率/Refractive index, 1.845
可調換/Exchangeable		 折射率/Refractive index, 1.845
可調換/Exchangeable
流通池
Flow cell		 Quartz and PDMS Quartz and PDMS
管
Tubes		 2 Stops, Tygon R3607,
ID:0.64mm; Wall:0.91mm		 2 Stops, Tygon R3607,
ID:0.64mm; Wall:0.91mm
匹配油
Matching Oil		 1.7000±0.0002
Cargille Labs		 1.7000±0.0002
Cargille Labs
樣品芯片
Sample Chips		 Sensor chips with 50 nm Au
可定制/Customizable		 Sensor chips with 50 nm Au
可定制/Customizable
其他
Others		 電源
Power Supply		 220V/50 HZ AC 220V/50 HZ AC
軟件
Software		 Sensby SPR Sensby SPR
操作系統
System		 Windows 7, 10 Windows 7, 10
